MAG-GAGE - Technical Specifications

Float Chamber

  • 2" - 3" W/RF Flanges - Sch 40
  • Branch Connections
  • 1/2" FNPT Vent & Drain Connections
  • All Flanges and Fittings rated for process conditions
  • Connections: 1/2" thru 8" plus
  • Pressure Ratings: Up to 5000 psig
  • Temperature Rating:
    -300° F to +1100°
  • Specific Gravity Range: .28 and up
  • Lengths from 4.0" to 50 feet

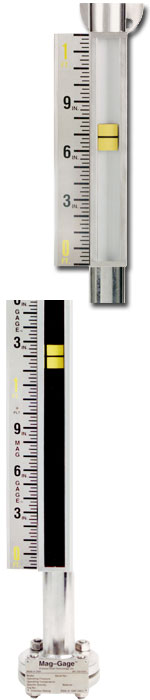

Scale
  • Feet and Inches with 1/4 inch divisions
  • Photoetched and backfilled stainless steel
  • Metric, Percentage, Volumetric
  • Optional 3-1/2" Wide Acrylic Scales

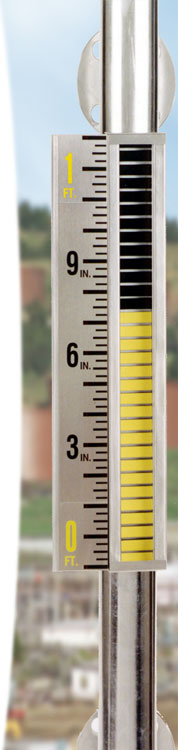

Indicator
  • Bright Colored
  • Can be seen from 200 Feet or More
  • 1/4" Wide
  • Hermetically Sealed
  • Custom Features Available
Standard Specifications
  • Non-Magnetic Chamber Material
  • All Flanges, Fittings and Pipe meet
  • ASME/ANSI Standards
  • Fabricated/Welded to B31.1/B31.3 Code
