Bypass Chambers/Bridles

Fabrication & Welding

Bypass Chambers
  • Instrument Bridles
  • Guided Wave Radar Chambers
  • Seal Pots
  • Day Tanks
  • Sample Recovery Systems
  • Spool Pieces
  • Bypass Chambers
  • Integrated Mag-Gage
  • All Alloys
  • All Plastics
  • B31.1 Boiler Code
  • B31.3 Piping Code
  • Hydrostatic Testing
  • NDT (Non Destructive Testing)
  • Third-Party Certified
  • Cryogenic Insulation
  • High Temperature Insulation
  • Heat Tracing
  • Steam Tracing
Customized Bypass Chambers

Product Mounting Styles

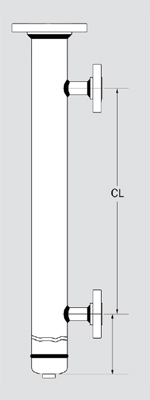

Bypass Chamber Mounting Style A

A/I

Bypass Chamber Mounting Style B

B/I

Bypass Chamber Mounting Style D

D

Bypass Chamber Mounting Style E

E

Customer Specified

Z

Typical Options

  • (LJ) Lap Joint with Strub End
  • (SO) Raised Face Slip-on Flanges
  • (WN) Raised Face Weld Neck Flanges
  • (RJ) Ring Joint Flanges
  • (N) NACE
  • (FC) FNPT Couplings
  • (MC) MNPT Couplings
  • Socket Weld Couplings
  • Steam Tracing
  • (HT) Heat Tracing
  • (IB) Insulation Blanket
  • (CI) Cryogenic Insulation
  • Special Options
REQUEST A QUOTE
